Today in this post, Available all resolution Software for TP.VST59S.PB801 universal LCD/LCD TV board. So, All resolutions are tested. Please first read how to install the software in TP.VST59S.PB801 universal board then install any software. You are on Digital Electronics official blog. This blog is created to provide you all Universal LED/LCD TV board Software for free. All software provided on this blog are fully tested, Please use these Software at your own risk. If you face any problem after installing any software from this blog, You will be responsible for any problem, Not me. Thanks for understanding.
Are you finding the best site to download all Smart and non-smart Universal LED/LCD TV board software firmware for free? You are on the best website you can download all Smart Universal LED TV board software. TP.VST59S.PB801 Software Free Download

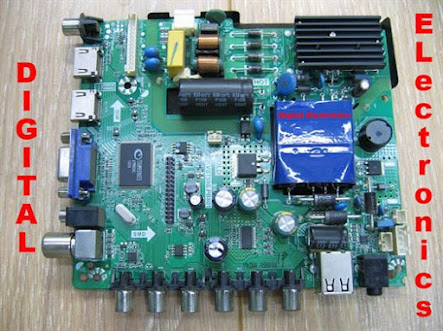

Universal TP.VST59S.PB801 LCD/LED Controller Board
Basic Information
Model No. : TP.VST59S.PB801
Main Chipset : TSUMV59XES
Display Resolution : 1920 × 1080
General Specification of TP.VST59S.PB801 Board
Backlight : 65 to 100V (40 W)
Panel Voltages : 12v
Mirror option : yes
Factory Service mode
Menu+1147
Input/Output Ports
► MAIN POWER
► DC 12V
► HDMI
► AV IN
► VGA IN
► PC AUDIO
► RF
► LVDS OUTPUT CONNECTOR
► EARPHONE
► SPEAKER 2 x 5 Watt (8 Ohm)
► INVERTER SIGNAL OUTPUT
► KEY OUTPUT+IR (Controllable by remote control)
► USB PORT (Firmware upgrade and multimedia playback support )
How to Upgrade Firmware
If you want to update software/Firmware in TP.VST59S.PB801 Universal Board. You can follow below instruction to install the software successfully without any problem.
1. After downloading the file. You have to extract the RAR file
2. Copy the required .bin file in FAT32 empty USB drive
5. After this led light will still on the red light
7. Now power on the board from remote and Enjoy! firmware is successfully updated
3. Plug in the USB dive into TP.VST59S.PB801 mainboard USB port of LCD/LED TV
4. Switch ON the power and wait even IR indicator led stop flashing
6. You can unplug the USB drive (It will take max 1min to upgrade Firmware/Software )
Note: Please install a correct resolution in your motherboard according to your panel. your LCD LED Panel’s Resolution by typing model of your panel on google, Then Download the correct resolution.
| S.No | File Name | Download links |
|---|---|---|
| 1 | T.VST59S.PB801-1366X768 Samsung Logo & Remote Digital Electronics | Download |
| 2 | T.VST59S.PB801_1366X768_Sony Logo & Remote Digital Electronics | Download |
| 3 | T.VST59S.PB801_LC390TU1A_42Q5F_1366x768_Panda Digital Electronics | Download |
| 4 | T.VST59S.PB801_USB File_77 Digital Electronics | Download |
| 5 | T.VST59S.PB801_USB File_86 Digital Electronics | Download |
| 6 | TP_VST59S_PB801_43FHD_IR_038_LOGO_SAMSUNG Digital Electronics | Download |
| 7 | TP.VST59S.PB801 Digital Electronics | Download |
| 8 | TP.VST59S.PB801_ LC490DUY Digital Electronics | Download |
| 9 | TP.VST59S.PB801_43 UHD Panel V420DK1-PS1 Digital Electronics | Download |
| 10 | TP.VST59S.PB801_1366X768 Digital Electronics | Download |
| 11 | TP.VST59S.PB801_1366x768_USB Digital Electronics | Download |
| 12 | TP.VST59S.PB801_1920x1080_Samsung Logo & Remote Digital Electronics | Download |
| 13 | TP.VST59S.PB801_1920x1080_USB_Ref60 Digital Electronics | Download |
| 14 | TP.VST59S.PB801_1920x1080_USB_Ref75 Digital Electronics | Download |
| 15 | TP.VST59S.PB801_DISCOVERY LED 32_Backup_Dump Digital Electronics | Download |
| 16 | TP.VST59S.PB801_G-Guard GG-43KE_Backup_Dump Digital Electronics | Download |
| 17 | TP.VST59S.PB801_General Delux LD4321_Backup_Dump Digital Electronics | Download |
| 18 | TP.VST59S.PB801_Guard GG-40KE_Backup_Dump Digital Electronics | Download |
| 19 | TP.VST59S.PB801_i-VIEW IV-32KE_Backup_Dump Digital Electronics | Download |
| 20 | TP.VST59S.PB801_LC390TA1A_42Q5F_1366x768_Panda Digital Electronics | Download |
| 21 | TP.VST59S.PB801_LC390TA2A_42Q5F_1366x768_Panda Digital Electronics | Download |
| 22 | TP.VST59S.PB801_LC430DUY Digital Electronics | Download |
| 23 | TP.VST59S.PB801_LED 40D2 Digital Electronics | Download |
| 24 | TP.VST59S.PB801_National Nanos NA32P2016_Backup_Dump Digital Electronics | Download |
| 25 | TP.VST59S.PB801_Panel_LC390TA1A Digital Electronics | Download |
| 26 | TP.VST59S.PB801_Panel_LC390TA2A Digital Electronics | Download |
| 27 | TP.VST59S.PB801_Panel_LC390TU1A Digital Electronics | Download |
| 28 | TP.VST59S.PB801_Panel_LC430DUY Digital Electronics | Download |
| 29 | TP.VST59S.PB801_Panel_LSC400HN02 Digital Electronics | Download |
| 30 | TP.VST59S.PB801_SAMSUNG LED28A01_Backup_Dump Digital Electronics | Download |
| 31 | TP.VST59S.PB801-HV320WHB_CROWN-K3200 Digital Electronics | Download |
